Infothek Baureferat

About the object

Round and in the middle of it all was the former reception desk of the Building Department H13 in Munich’s Technical City Hall. What was certainly an eye-catcher for visitors turned out to be an increasing burden for the staff. Severe draughts, a lack of safety precautions, a lack of height-adjustable workstations or even non-existent retreat options were the result.

Architect

Pöhlmann + Krompass

Section

Office & Administration

Execution

2020

Location

Munich

From round to square

The foyer of the Building Department H13 in Munich’s Technical City Hall was to be converted to make it more user-friendly. In consultation with the departments involved, the planners from Pöhlmann + Krompass Planungs- und Ingenieurgesellschaft mbH decided without further ado not to simply convert the Infothek, but to relocate it to a closed room previously used as an office. Thanks to the wooden framing and the elegant vertical sliding apron by Baier, the reception area shines in a new splendour and provides a significantly improved working atmosphere.

The courage to take a corner – also with our sliding window solution

Due to the conversion of the former office space into an information desk, the planners had to come up with something so that visitors could find their way directly there despite the decentralised position. This was achieved by clearly defining the corner situation of the building. A surrounding, clearly visible wooden construction with a recessed light band and movable elements creates an inviting atmosphere. Defined as a special building element by the wooden elements, the Infothek thus separates itself from the rest of the office space and creates a direct connection to the visitors.

Despite the extensive range of sliding windows, a special solution had to be found in this building project: Baier was on hand to advise as early as the planning phase and, together with the planners, developed individual elements that were aimed at the special needs of the installation.

Fixed glazing and vertical sliding

The uninsulated window element, as it is located in the interior, consists of a total of four components. Two of the movable elements are arranged at the high counter and were produced and delivered in the clear opening dimensions of 1421 x 910 mm. Another sliding apron has clear opening dimensions of 990 x 910 mm and is supplemented at the corner by fixed glazing with external dimensions of 860 x 1400 mm including corner coupling of 90°. The three single-leaf sliding sashes move up and down by motor with patented fall protection.

Counterweights provide weight compensation. These are stainless steel tubes cast with lead and connected to the sash by stainless steel cables. Mechanics, drive and technology are visually invisible. The drive and control technology was supplied in a separate control box. In order to be able to control the elements optimally, the control system type Hyperion I, specially developed by Baier, was used. For safety reasons, the control system may only be operated in dead man’s mode by instructed personnel. The elements are set in motion by pressing a switch and move either up or down. The said dead man’s switch ensures that as soon as the user has released the button, an additional switching action is necessary for restarting.

Dimmed for more privacy

The glazing is 8 mm laminated safety glass. In order to enable undisturbed working when the window elements are closed, the planners in Munich opted for dimmable glass that can be electrically switched. To visually complement the warm wooden construction of the Infothek, the surface of the frame profiles was powder-coated in DB 702. The conversion fulfils all aspects of contemporary architecture. In future, the staff will no longer be exposed to draughts and will also have the opportunity to withdraw when their work requires it or when they need to rest. The advantages of sliding windows are obvious. Both in front of and behind the window, free use and furnishing of the room is possible, as the opening sash does not protrude into the room. Despite the fact that the window appears to be closed, the desired ventilation cross-section can be selected as desired by opening the window just a crack wide. And even in the event of a strong draught, there are no slamming windows because the opening sash is rigid and cannot be caught by the wind.

Visitors and staff alike are more than satisfied with the new reception situation. And so is Baier. If you are interested in standard or special solutions, please do not hesitate to contact us.

Similar references

Residential and office building in Istanbul

Baier GmbH had the task of equipping the top floor of a high-rise building with sliding windows. On behalf of our German partner, the façade was designed in a prime location on a new building with a view of the Bosporus and the city.

More about the project

Europa-Park Rust

Baier GmbH, from Renchen-Ulm, has already worked on several projects at the park. This involves the new construction or conversion of vertical sliding windows. Mainly for the gastronomic area in various themed areas of the park. In the years 2009 to 2019, Baier GmbH was able to demonstrate its skills.

More about the project

Europa Park Stadium

Whether handing in luggage for storage, collecting reserved tickets or carrying out accreditations: The service areas in Freiburg's Europa-Park Stadium are equipped with space-saving vertical sliding windows from Baier.

More about the project

Functional building Sportpark Goldäcker

In addition to new changing rooms, athletes, referees, groundsmen and guests can enjoy additional service areas in the functional building at the Goldäcker sports park in Leinfelden-Echterdingen. Ticket sales and hospitality are now efficiently controlled via practical sliding windows from Baier.

More about the project

Gaisbacher Hof

Up to 120 people can be catered for in the magnificent garden restaurant of the Gaisbacher Hof. An automatic door and a vertical sliding window from Baier optimise workflows by efficiently connecting the outdoor and indoor areas.

More about the project

Hardys Kiosk Lake St. Leon

The task of replacing the sliding windows at the snack bar at the campsite sounded insoluble: develop larger sliding windows for existing opening. But Baier wouldn't be Baier if there wasn't a solution. It lies in the detail - in the connection detail.

More about the project

Hotel Engel

Four large vertical-sliding windows with internal glazing bars can be opened in fine weather to save space - simply at the touch of a button. The hotel's rural interior style has been combined with the modern materials of metal and glass.

More about the project

Hotel Weitblick in Marktoberdorf

Extremely practical - pure fresh air pleasure for all relaxation-seeking Allgäu air lovers who enjoy swimming outdoors. At the touch of a button, the Baier swimming pool window separates the indoor from the outdoor pool.

More about the project

Kiosk at the Schlosssee

The modern "sales points" around the building were equipped with Baier vertical sliding windows. They are ideally suited as "pass-throughs".

More about the project

Les Quatre Temps La défense

Together with our French partner company Bativitre, Baier realised a building project in the modern high-rise district La Défense west of Paris. The 4617mm high and 1990mm wide windows with skylight were equipped with electric drive and electric locking.

More about the project

Media library Bühl

Large windows, small windows, square, horizontal or vertical formats, flush with the façade or recessed. A wide variety of openings are the hallmark of the media library in Bühl. Now another one has been added: a sliding window from Baier secures the 24-hour accessible outside return.

More about the project

Mobile Tourist Info Weimar

For the realisation of the information kiosk, the Rheinau-based company Ruku Anhängerbau sought cooperation with an experienced metal construction company. Baier planned and constructed two telescopic vertical sliding windows and one horizontal sliding window for the counter and bar area of the modern building.

More about the project

Elisabethmarkt Munich

Munich's popular Elisabethmarkt with its sales huts will be rebuilt for two long years. An interim market with containers is to provide a replacement. Traders and customers were sceptical. But thanks to sales windows from Baier, goods can be presented, customers served and a market atmosphere created.

More about the project

Sports Arena Oschersleben

They know all about speed at the Motorsport Arena Oschersleben. To ensure that things also move quickly in the outdoor catering area, the food counter and cash desk in the Arena Diner are well organised. Pay here, pick up there - clearly arranged behind a large sliding window system with two separate vertical sliding windows.

More about the project

Theodor-Heuss-Straße Stuttgart

Here at the Theo, the Baier company has realised two building projects at once. In Theodor-Heuss-Straße, Baier installed a vertical sliding window as a street sales counter and exactly opposite, the entire window front of a restaurant was modernised and equipped with vertical sliding windows during the same period.

More about the project

Jaderpark Animal and Leisure Park

The ticket office area in the animal and leisure park was considerably expanded. The old ticket booth was replaced by a complex with half a dozen ticket windows. A concept with 6 identical Baier VSF 210 vertical sliding windows, each with two fixed elements on the side, was developed here.

More about the project

Tramhüsli Bellevue Zurich

Next to the blue-and-white trams, Herman Herter's bus shelter is the sight to see on Zurich's Bellevue Square. A real eye-catcher - the cylindrical glass pavilion, with its traditional kiosk and the beautiful Belcafe, where, according to numerous travel guides, you can get the best and fastest espresso in all of Zurich.

More about the project

Villa Eden Lake Garda

SIGNA has created a first-class paradise in the holiday region of Lake Garda - the luxury resort "Villa Eden Gardone". In addition to a vertical sliding window for a private swimming pool, the company Baier from Renchtal in Baden has manufactured a so-called swimming pool window for the central 5-star clubhouse.

More about the project

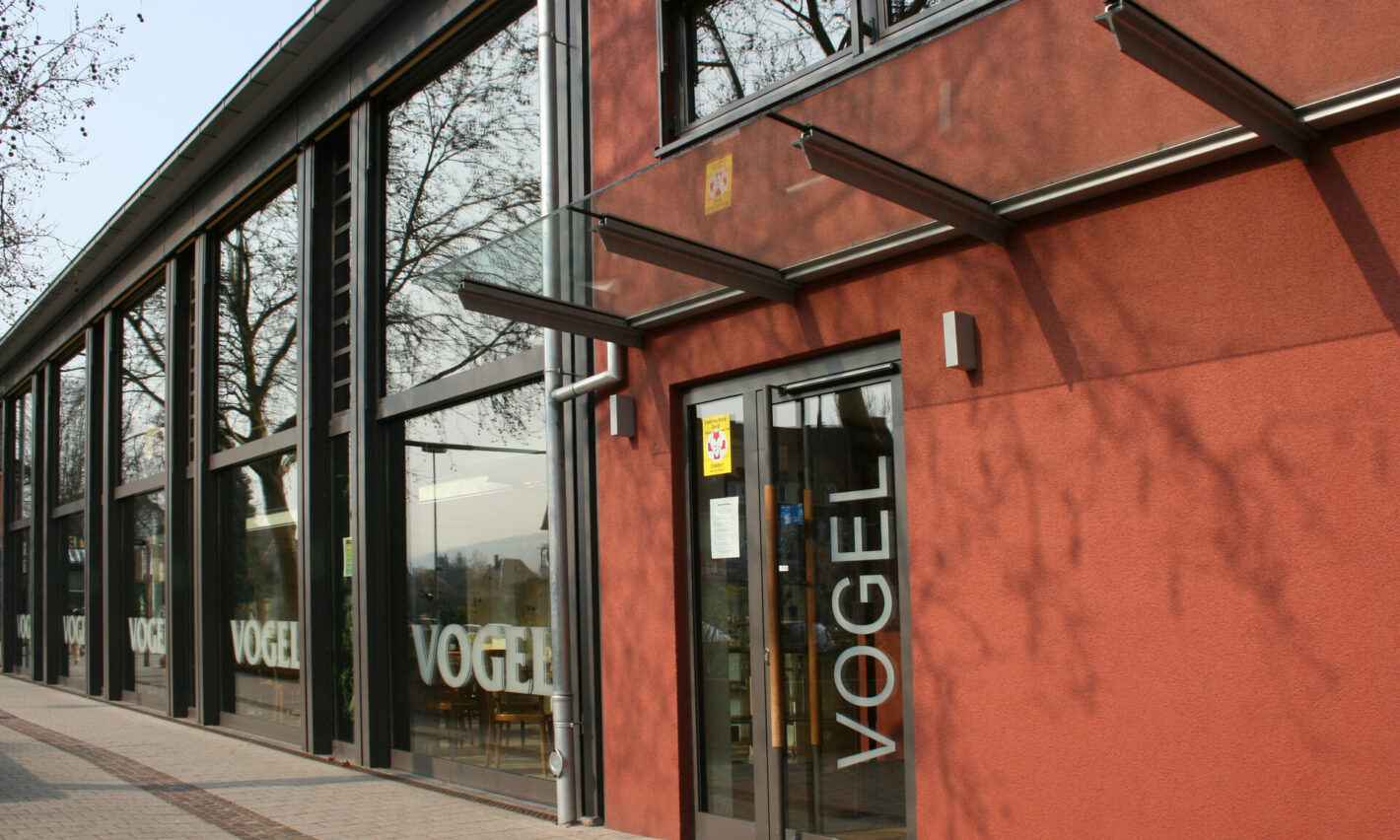

Vogel Hausbräu Ettlingen
