Architectural monument Löwen

About the object

The history of the Löwen Inn dates back to the 16th century. Over the centuries, the stately house in Rot, Baden-Württemberg, was repeatedly changed and extended.

Today, as part of the former Premonstratensian Abbey of Mönchsroth, the building is an architectural monument of national rank. Now it was to be converted according to the original main concept from 1695: Seven flexibly usable residential units and a medical practice on 4 floors.

used products

Architect

JaKo Denkmalpflege GmbH

Section

Living

Execution

2017

Location

Rot an der Rot

© JaKo Denkmalpflege GmbH

The task: Bright and comfortable living space in the 2nd attic floor.

Despite the historical building fabric, the rooms were to meet the most modern standards: high quality, barrier-free and taking ecological aspects into account. Of course, the entire conversion had to be carried out in accordance with the preservation order.

In addition to the installation of a lift, the new roof extension was a particular challenge. While existing dormers provided daylight in the attic 1, only skylights were possible in the attic above – and that under strict monument protection regulations.

The solution: customised skylights with sun protection slats suitable for listed buildings.

Those responsible at JaKo Baudenkmalpflege decided to work with Baier. In the metal construction experts, the restoration specialists found an ideal partner.

The medium-sized family business is characterised not only by great know-how in the field of roof windows and structural sun protection, but also by a high degree of architectural understanding and creativity in the development of object-specific solutions. For the roof renovation of the historic inn, Baier was able to combine its core competencies, which the company has already proven in numerous reference projects. In addition, the high qualitative standards of both companies matched.

Baier supplied and installed a total of ten customised skylights including rigid sun protection louvres. The wooden roof windows have a metal cladding in RAL 8002 signal brown on the outside. In terms of colour, it matches the historic beaver roof covering well. The installation frame was lowered and thus also adapted to the historic roofing.

© JaKo Denkmalpflege GmbH

© JaKo Denkmalpflege GmbH

Modern sun protection for historical view

Baier supplemented the skylights with additional shading with 8 rigid Z-slats made of folded sheet metal – also in the colour RAL 8002. The sun protection has two functions at once:

  • Thanks to the colour-matched lamellas, the skylights blend in with the roof covering. In this way, it was possible to enhance the interior rooms behind with a lot of daylight despite the requirements of the heritage protection authority.
  • At the same time, the external sun protection prevents the attic flats from heating up when the sun is high in the sky and thus energy-intensive cooling. The low winter sun, on the other hand, enters the rooms and supports heating in the cold season as a passive heat source.

Excellent intuition instead of hands off

Many people leave the renovation or conversion of a listed building to their own devices – and thus often waste great opportunities. Thanks to Baier’s well-thought-out building components, the monument conservators were able to realise high-quality living space in the top floor of the former Löwen inn – bright, modern and energy-conscious. This also convinced the jury of the Rudolf Müller Renovation Prize. They awarded the property the 2019 prize in the building preservation category.

The decision-makers at JaKo Baudenkmalpflege were also convinced by the success and have realised further monument conservation projects together with Baier. If you would also like to start a successful cooperation with Baier, please contact us. We will be happy to advise you.

© JaKo Denkmalpflege GmbH

Similar references

Kaffeeberghöfe

The listed building ensemble "Kaffeeberghöfe" in the Affstätt district of Herrenberg has undergone a complete restoration. Both the main house with eight residential units and the two barns, each with two residential units, now shine in new splendour. In order to comply with the preservation order, Baier manufactured sun protection slats for the new skylights.

More about the project

Cultural Monument Gasthaus zur Post

The listed Gasthof zur Post shines in new splendour after extensive renovation. In the attic flats, modern roof windows with external sun protection slats provide plenty of light, fresh air and heat protection - all in harmony with the preservation order.

More about the project

Walddorfhäslach Ochsen-Areal

In the centre of Walddorfhäslach, the building complex on the Ochsen site has been given a new lease of life. Instead of a new building, the municipality decided to renovate the centuries-old half-timbered buildings. Included: a sunshade from Baier.

More about the project

Alte Kelter Tübingen

The well-known half-timbered building called Tübinger Kelter has its origins in the early 16th century. Instead of its original use for wine production, the building now houses a restaurant including a vinotheque and liquid bar. Five centuries after its construction, the only window sloping in the direction of the ridge has now also been given a makeover. In the form of slat shading from Baier.

More about the project

Old countyard in Badenweiler

As a specialist for project-specific custom-made products, Baier GmbH was able to deliver exactly what the architects envisioned in terms of material and design. Integration into the façade and flushness were to be guaranteed.

More about the project

ABC Street Hamburg

The metal construction company Baier from Renchen-Ulm in Baden was commissioned with the complete "sliding shutters" project. Within 6 months, more than 650 hangings were installed, of which more than 600 were motor-driven.

More about the project

Architect's Villa Zehnpfennighof

Villas of various ages, listed buildings, quiet residential area with the best neighbourhood, an exclusive location, rural with access to the city of Cologne - what more could you want?

More about the project

Architectural monument Löwen

Roof conversion in a national monument? This calls for a flair for the nimble - and partners who pull in the same direction. With skylights including shading appropriate for a listed building, the conservationists were able to realise modern living space in the historic roof truss.

More about the project

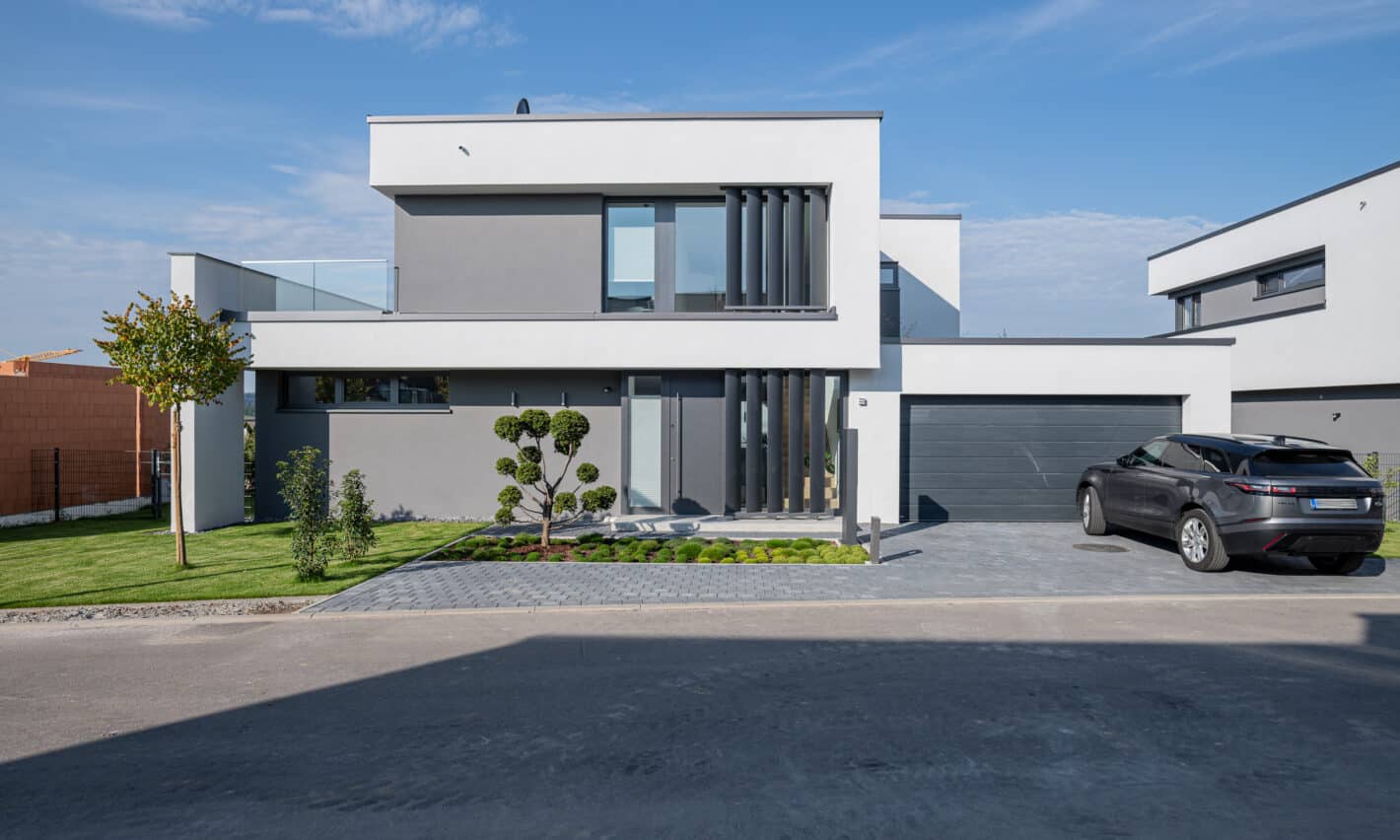

Bauhaus Villa
