Krakau

Model Krakau

Trapezoidal lamella 68 x 16

Frame

Surrounding: extruded aluminium profile 48 x 37 mm, L-shaped, laterally with additional retaining strip for lamellas

Rung

only on request (custom-made)

Filling

Extruded aluminium profile 68 x 16 mm, trapezoidal.
Centre distance of the lamellas: 70 mm.

Processing

Frame profiles mitred, pressed and glued using corner brackets. Lamellas inserted into the retaining strip. Retaining strip clipped into the frame and pressed. Coating of the hangings after assembly.

Surface

Powder-coated, according to RAL standard colour chart, silk gloss; other special colours or structures available.

Sizes

Maximum width 1500 mm, maximum height 3000 mm.
Not all width and height ratios may be possible.

Weight

about 19 kg / m²

Ellipsoidal lamella 50 x 13

Frame

Surrounding: Extruded aluminium profile 48 x 37 mm, L-shaped, laterally with additional retaining strip for lamellas.

Rung

only on request (custom-made)

Filling

Extruded aluminium profile 50 x 13 mm, elliptical.
Centre distance of the lamellas: 45 mm.

Processing

Frame profiles mitred, pressed and glued using corner brackets. Lamellas inserted into the retaining strip. Retaining strip clipped into the frame and pressed. Coating of the hangings after assembly.

Surface

Powder-coated, according to RAL standard colour chart, silk gloss; other special colours or structures available.

Sizes

Maximum width 1500 mm, maximum height 3000 mm.
Not all width and height ratios may be possible.

Weight

about 13 kg / m²
RAL-Farbfächer der Firma Baier

RAL of choice

Baier sliding shutters can be delivered in all colour variants.

Powder coating of the individual sliding shutter components provides a wide range of design options. This allows us to create the appropriate product for each of your individual requirements.

References

RoMed Clinic Rosenheim

From the inside, the new building of the Rosenheim Clinic impresses not only with the latest medical and building technology but also with a high level of comfort for staff, patients and visitors. From the outside, Baier's sun and privacy protection in the form of a total of 93 motor-controlled sliding shutters contributes to the harmonious overall appearance.
More about the project

Apartment house Bühl

A multi-family house with an underground garage was built in Bühl in the immediate vicinity of the French border. The lightly plastered building is equipped with anthracite-coloured sliding shutters from Baier, which give the façade of the new building that certain something. They provide a contrast to the purist shell of the cubic residential building.
More about the project

Day care centre Bergen-Enkheim

The property in Enkheim used to be used by the fire brigade, but today it is home to a daycare centre with six playgroups. 13 sliding shutters with vertical aluminium slats complement the modern façade and support the building's energy efficiency.
More about the project

Health centre

The demands on residential facilities for senior citizens have changed greatly in recent years. Most people would like to live in their own household and familiar surroundings for as long as they can. The Jöhlingen Health Centre offers centrally located, barrier-free flats in its Haus der Gesundheit (House of Health), Haus der Pflege (House of Care) and Haus des Wohnens (House of Living).
More about the project

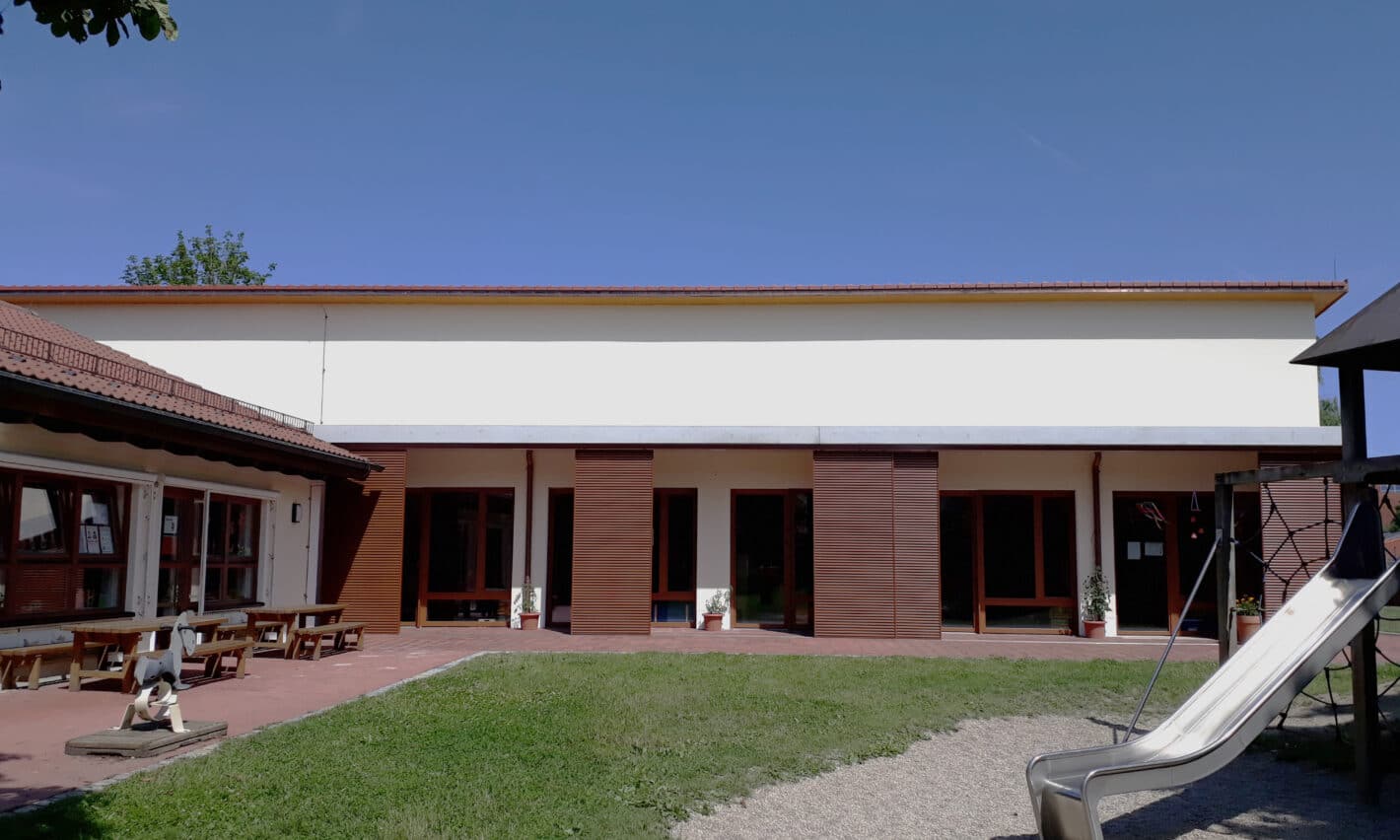

Community kindergarten
